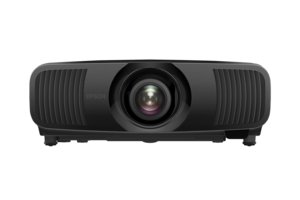

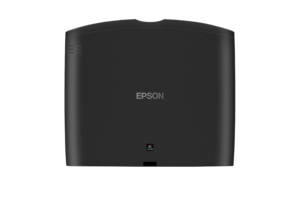

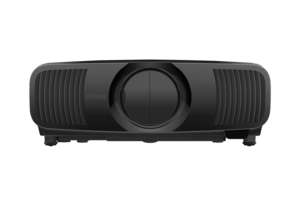

Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector

Zoom In
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector
Epson EH-LS9000B Home Theatre 4K 3LCD Laser Projector

4K laser projector for the ultimate movie nights

The EH-LS9000B is a 4K1 laser movie projector designed for serious home cinema. Delivering crisp 4K resolution, smooth motion, and vivid colour, it brings the true cinema experience to your dedicated space. With powered lens controls and long-lasting performance, it’s a flexible, low-maintenance solution for film enthusiasts.

  • 2200 lumens Colour and White brightness3
  • 4K resolution1
  • HDR10+ support
  • Frame interpolation of up to 4K 60fps
  • Installation flexibility made possible with wide lens shift



Find Accessories

Stunning picture quality
4K display technology1 with HDR10+ produces a full 8.3 million pixels on-screen for an exceptionally clear 4K UHD experience.

Immersive big screen entertainment
Up to 2,200 lumens of colour and white brightness3 produce an immersive picture up to 300" to fill up your entertainment space.

Virtually maintenance-free
20,000-hour solid-state laser light source with an advanced vapour-cooled thermal transfer design provides instant power-on with no bulbs to be replaced.

Flexible placement
Making installation simple, you can precisely shift the lens up to ± 24% horizontally and up to ± 96% vertically without any loss in picture distortion or clarity. You can also set the zoom and focus, then store all the settings in one of ten lens memory presets.

Enhanced connectivity
IP control support for user's design using Projector inside Smart Home network

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD: Size: 0.74-inch
Native Resolution: Full HDResolution On-Screen (Maximum): Resolution: 4K
Pixel Number: 8.3M pixels (1920 x 1080 x 4)Projection Lens: Type: Power zoom, Power focus
F-Number: 2.0 - 3.0
Focal Length: 22.5 mm - 46.7 mm
Zoom Ratio: 1 - 2.1
Throw Ratio (Wide - Tele): 1.35 - 2.84
Type: Laser
Life (Normal/Low*2): 20,000 / 20,000 Hrs

Screen Size (Projected Distance):

Zoom : Wide: 50 " to 300 " [1.48m to 9.08 m]Zoom : Tele: 50 " to 300 " [3.13m to 18.99 m]Standard Size: 100" screen 3.00 - 6.30 m

Contrast Ratio:

Contrast Ratio: over 2,500,000:1

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°Point Correction: YesQuick Corner: Yes

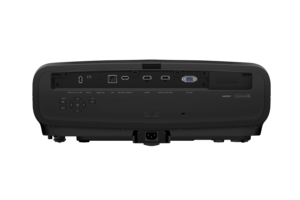

Connectivity:

Network: Wired LAN: RJ45 x 1
Wireless: N/ADigital Input: HDMI: 2 (HDMI2=eARC/ARC, HDCP 2.3)Control I/O: RS232C: D-sub 9-pin x 1
Trigger Out: 3.5mm Stereo Mini x 1USB I/O: USB Type A: 2 (1: 480Mbps for Firmware update, Copy OSD Settings, Save Log or 5V/2A Power Supply; 2: for 5V/300mA Power Supply. This port has no USB function, for Opt.HDMI)
USB Type B: 1 (for Firmware update, Copy OSD Settings)

Operating Altitude:

Operating Altitude: Over 1500m / 4921 ft with High altitude mode: 0m to 3048m <0ft to 10,000ft>

Start-Up Period:

Start-Up Period: Less than 8 seconds
Warm-up period: 30 seconds

Cool Down Period:

Cool Down Period: Instant off

Direct Power On/Off:

Direct Power On/Off: Yes / N/A

Air Filter:

Air Filter*4: 5,000 hours

Weight:

Weight: 12.7 kg

Adjustment Functions:

Aspect Mode: Yes (Auto / Full / Zoom / Anamorphic Wide / Horiz.Squeeze)Colour Mode: Dynamic
Vivid
Bright Cinema
Cinema
NaturalScene Adaptive Gamma: Yes

Image Enhancement:

Image Preset Mode: YesMpeg Noise Reduction: YesSuper Resolution: YesAuto Contrast Enhancement: YesFrame Interpolation: YesNoise Reduction: Yes

Operating Temperature:

Operating Temperature: 0m / 0ft to 2286m / 7500 ft (Low altitude): 5 °C to 35 °C <41 °F to 95 °F>
Over 2286 m / 7500 ft (High altitude): 5 °C to 30 °C <41 °F to 86 °F>
(20% - 80% Humidity, No Condensation)

Internal Speaker(s):

Sound Output: N/A

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H): 520 x 447 x 169mm

Lens Shift Range:

Lens Shift: Vertical: ±96.3% (H center)
Horizontal: ±24.0% (V center)

Power Supply Voltage:

Power Supply Voltage: 100 - 240 V AC ± 10%, 50/60 Hz

Power Consumption (220-240V):

LD On (Normal / Eco): 302W / 198WStandby (Network On / Off) : 2.0W / 0.4W

Fan Noise (Normal / Eco):

Fan Noise (Normal / Eco): 30 dB / 22 dB

Brightness*3:

White Light Output (Normal/Eco): 2200lm / 1000lmColour Light Output: 2200 lm
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Using Pixel shifting technology

*2 where Low=Eco/Extended/Quiet, whichever lower

*3Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3 ). Based on the Epson’s in-house test results.
