WIDEN YOUR VIEW. STRETCH YOUR DOLLAR.

Capable of producing an amazing Full HD resolution with up to 3,000 lumens, your images remain crystal clear even for large projections.

    • White and Colour Brightness at 3,000lm
      WXGA resolution
      High contrast ratio of 15,000:1
      Horizontal keystone slider
      10,000 hours lamp life in eco-mode



  • Model: V11H718052
Support Where to Buy

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness*1:

White Light Output (Normal): 3,000lm/2,100lmColour Light Output: 3,000lm

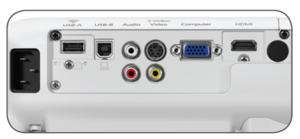

Connectivity:

Analog Input: D-Sub 15 pin: 1 (Blue molding)
Composite: RCA x 1 (Yellow)
S-Video: 1

Contrast Ratio:

Contrast Ratio: 15,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode : IEEE 802.11b: 11 Mbps, IEEE 802.11g: 54 Mbps, EEE 802.11n: 130 MbpsWireless LAN Security: WPA-PSK/WPA2-PSK(TKIP/AES), WPA2-PSK(AES) (Optional Wireless LAN Unit use)Supported Connection Mode: Infrastructure, Access Point

Screen Size (Projected Distance):

Standard Size: 60" screen 1.68 - 2.02 mScreen Size (Projected Distance): Zoom: Wide; 33" - 320" [0.9 - 9.0 m]

Operating Temperature:

Operating Temperature: 5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)5 - 30 ë°C <41 - 86 °F> (over 2,286m / 7,500ft)(20% - 80% humidity, No condensation)

Operating Altitude:

Operating Altitude: 0 - 3,000 m <0 - 9,843 ft> (over 1,500m / 4,921ft: with high altitude mode)

Start-Up Period:

Start-Up Period: About 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 1W Monaural

Dimension Excluding Feet (W x H x D):

Fan Noise (Normal/Eco): 37dB / 28dB

Air Filter:

Type: 200W UHEMaintenance Cycle: 5,000 hours / 10,000 hours (Power consumption: Normal / Eco) *4

Power:

Power Supply Voltage: 100 - 240 V AC °±10%, 50/60 Hz

Main Parts Specification:

LCD: Size: 0.59" (D9, C2fine)
Native Resolution: WXGAVideo Output: HDMI: 1 (MHL not supported)

Optical Systems:

Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.58 - 1.72
Focal Length: 16.9 - 20.28 mm
Zoom Ratio: 1.0 - 1.2
Throw Ratio: 1.30 - 1.56 (Wide - Tele)Lamp: Life (Normal/Eco): 5,000 hours / 10,000 hours
Type: 200W UHE

Dimensions:

Weight: 2.4kg

Keystone Correction:

Vertical/Horizontal: ± 30% / ± 30% Horizontal Slide Keystone Correction: YesAuto Keystone Correction: Yes (Vertical only)Quick Corner: Yes

Audio Input:

2 RCA (White/Red): 1

Others:

USB Type A: 1 (for USB Memory, Document Camera, Wireless LAN, Firmware Update)USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update)

Network:

Wireless LAN: Optional (ELPAP10)

Touch Unit:

Weight: 234 x 297 x 77 mm

Direct Power On / Off:

Direct Power On / Off: Yes
