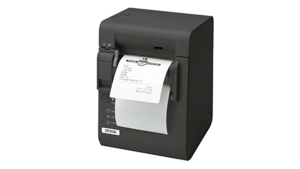

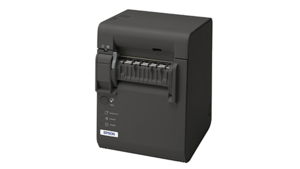

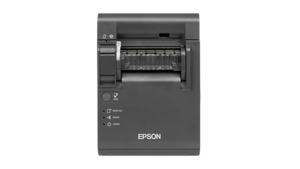

Epson TM-L90 Thermal Label Printer with Peeler

Product Models displayed on this website may be available in certain regions only.

Fast and accurate label solutions

Power up your business with high-quality receipts and labels with Epson’s dual-function thermal printers – TM-L90 series. Featuring blazing print speed of up to 150mm per second in high-speed mode, the TM-L90 Peeler is designed and built with the reliability that Epson is trusted in. With the optional wall-mount kit, this compact label printer works perfectly in space constraint environments.

      • Speed: Up to 150mm/sec
      • Up to 90mm paper diameter
      • Selectable paper width
      • Flexible to wall-mount



Superb Paper Handling
Customers will not be kept waiting when you equip your business with the Epson TM-L90 Peeler, making it suitable for use in retail and hospitality industry. With a maximum printing speed of 150mm/sec, your receipt or label will be ready in seconds – even when printing barcodes and logos.

With an all-rounded paper-handling versatility, it can process paper rolls of up to 90mm in diameter, reducing paper-loading downtime and saving on the cost of
purchasing label paper.

In addition, TM-L90 Peeler offers selectable paper width. With a simple spacer adjustment, it can be modified to suit a variety of label types and sizes for both standard and adhesive-backed paper.

Superior Design
A compact design makes TM-L90 Peeler ideal for counters with limited space. Its low profile means that face-to-face contact with your customers is unimpeded, and there are no sharp corners or jutting out parts to get in the way.

It also removes the problem of unsightly cables by having all its interfaces beneath the printer. With flexible installation options, you can now choose to keep the cables out of sight in your premises.

TM-L90 Peeler blends perfectly into even the most refined environment. Install the printer vertically or horizontally, or use the optional wall-hanging bracket to move it off the counter altogether.

Remarkable Usability
The printer is easy to use which requires almost no training. With simple and straight-forward paper feeding, the drop-in loading method allows operators to open and load new paper within a few short seconds.

Not only are paper jams unlikely with TM-L90 Peeler, but they are easy to clear if they do occur. With a long lifespan, it can print up to twenty million lines, offering the reliability that you seek.

In addition, TM-L90 Peeler can be easily integrated with existing POS application as it supports the same standard commands for the retail environment.

Printing Technology:


Print Method: Thermal ine, 203 x 203 dpiPrint Width: Receipt: Max. 72 mm (with 80 mm paper width)
Label: Max. 70 mm (with 80 mm liner width)Print Speed: Thermal Paper (w/o BM): Max. 150 mm/sec
(Print density configurable. Max. 90 mm/sec for ladder barcode and two dimensional barcode printing)Print Font: Font A (Default) Characters per line (80 mm): 48 (12 x 24)
Font B Characters per line (80 mm): 64 (9 x 17)

Print Fonts:


Character Set: 95 alphanumeric, 18 international character sets, extended graphics 128 x 47 pages (including user-defined page)Barcode: UPC-A, UPC-E, JAN8 (EAN), Jan13 (EAN), ITF, Code39, Code93, Code128, Codabar (NW-7), PDF417, MaxiCode, QRCode, GS1-128, GS1 DataBar, Omnidirectional, GS1 DataBar Truncated / Stacked / Stacked Omnidirectional / Limited / Expanded / Expanded Stacked, Composite Symbology, DataMatrix

Paper Specifications:


Paper Saving: Back Feed: Yes (When operating using EDC/POS commands only)Roll Paper: Changing Method: Paper guide
Paper Width: 80 mm (factory setting) or 38 – 70 mm (Users can change the paper width per 1 mm)
Paper Type: Receipt w/o BM, Receipt w/BM, Die-cut label w/o BM, Die-cut label w/BM
Diameter: 90 mm

Data Buffer:


Data Buffer: Receive buffer 4 Kb / 45 bytes

Operating Specifications:


Auto Cutter: Cut Type: Full cut (factory default) or Partial cutD.K.D Function: 2 driversPrinter Interface: Built-in USB 2.0 + LANFactory Options: Paper roll spacer, Wall-hanging bracket WH-10

Software Specifications:


Operating System: Windows 10 / 8.1 / 8 / 7 SP1 / Vista SP2 / XP Sp3 (32bit) / Server 2019 (64bit) / Server 2016 (64bit) / Server 2012 R2 / Server 2012 / Server 2008 R2 SP1 / Server 2008 SP2 / Server 2003 R2 SP2 / Embeded Standard 7 / Embeded POS Ready 7Driver Utility: APD / OPOS ADK / OPOS for .NET / JavaPOS ADK

Product Specifications:


Reliability: Printer Life: Receipt: 20 million lines / Up to 120km (on 75 μm paper) | Label: 1 million / Up to 30 - 70km
Head Life: Thermal receipt paper: 150 million pulse
MTBF: 360,000 hours | MCBF: 70 million linesSafety Standard: Environment Standards: WEEE, RoHS compliant
EMI Standards: Europe: CE Marking N. America: FCC Class A, CAN ICES-3 (A)/NMB-3 (A) Oceania: Radiocommunications (Electromagnetic Compatibility) Standard, Class A = AS/NZS CISPR32 Class A | EAC: Russia / Belarus / Kazakhstan / Ukraine / Morocco
Safety Standards: UL, CSA, TUV (EN60950-1)

Electrical Specifications:


Power Supply: External Power Adaptor: PS-180 (included)
Operating Voltage: DC 24 V ±7%Power Consumption: Operating: Approx. 1.8 A (mean)
Standby: Avg.: Approx. 0.1 A (maximum 1 A for drawer kick driving)

Product Packaging:


Weight & Dimension: Size (H x W x D): 203 x 140 x 148 mm
Weight: Approx. 1.9 kg
Energy Star: No
